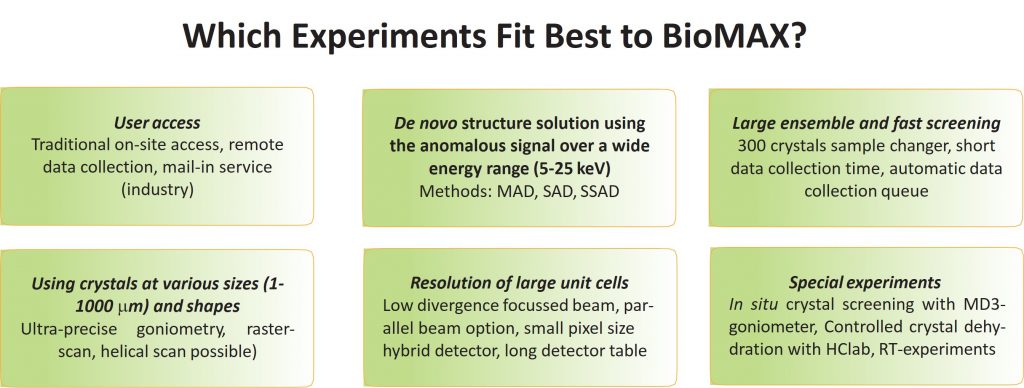

BioMAX experimental station

MD3 Microdiffractometer
Sphere of confusion150 nm at 100 deg/sec fixed Omega axis, 750 nm with Mini-kappa
Sample microscope12x zoom, on-axis
Additional environmentsMini-kappa goniometer, HC-lab dehumidifier, High viscosity extrusion injector for SSX
Sample centering mechanical resolution200 nm
Beam shaping5-100 μm diameter
Eiger 16M Hybrid-pixel Detector
Number of pixels4150 × 4371 = 18’139’650
Sensor materialSilicon, 450 μm thickness
Pixel size75 × 75 μm2
Sensitive area311.2 × 327.8 mm2
Max.frame rate 16M / 4M Mode133 Hz / 750 Hz
ISARA Sample Changer
Number of samples364 in universal pucks
Supported Puck standardUniversal Puck
Sample exchange time < 25 sec
