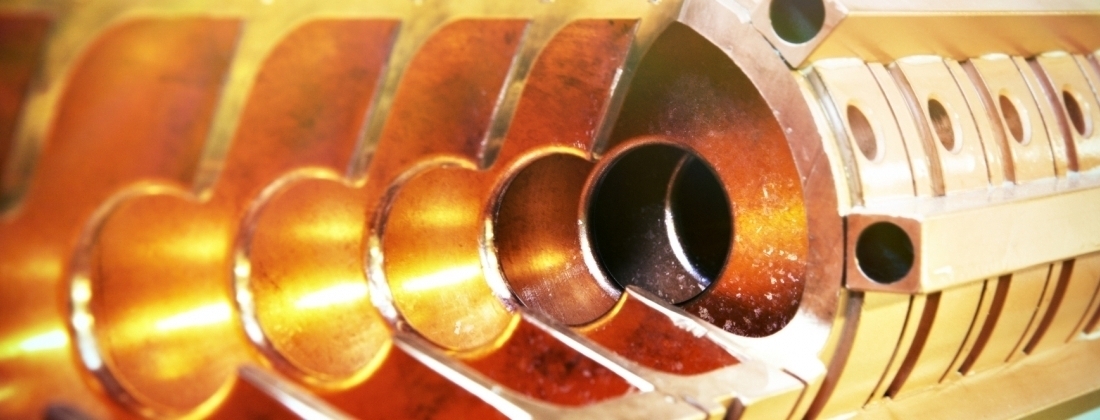

Linac Structure 1140x420 Acf Cropped 1140x420 Acf Cropped 1140x420 Acf Cropped 1140x420 Acf Cropped

The MAX IV linac serves two purposes: it’s a continuous top-up injector to both storage rings, but it also accelerates and compresses electron bunches for the short-pulse facility. The linac consists of two electron guns (a photo-rf gun for SPF pulses and a thermionic rf gun for storage ring injection), two bunch compressors, and 39 S-band accelerating structures along with their power stations (modulators, klystrons, SLED cavities). Two vertical transfer lines connect the linac with the two storage rings.

Nominal Energy3.0 GeV
No. of accelerating structures39
Overall length~300 m
Nominal bunch length (FWHM)100 fs
Normalized emittance (RMS)< 10 mm mrad
